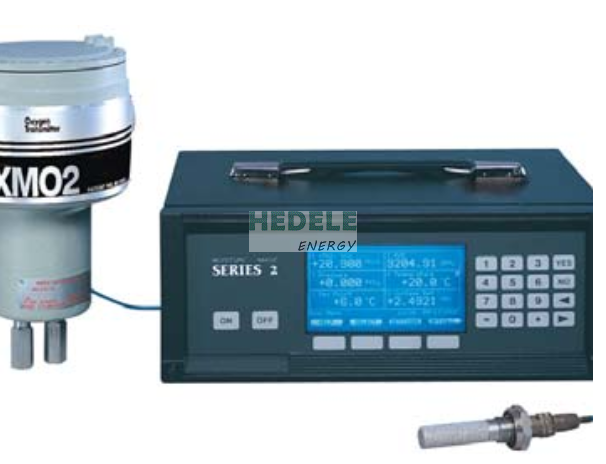

XMO2 American GE Oxygen Transmitter

Product Introduction
XMO2 combines the proven paramagnetic oxygen probe with computer enhanced, automatic oxygen compensation, fast response software, real-time fault diagnosis, and self calibration functions, giving the transmitter unparalleled performance and easy use. This small protective/explosion-proof oxygen transmitter is designed specifically for online on-site installation, thus minimizing sampling requirements and ensuring optimal sampling and fastest response. It has no movable parts, is not affected by installation position or vibration, and has excellent long-term stability. The two chamber oxygen tank design of XMO2 ensures that it is not affected by pollutants and changes in flow rate.
Product Parameters
XMO2 American GE Oxygen Transmitter
Features:
Measure the oxygen content in the gas from 0.01% to 100%
The protective/explosion-proof casing allows the probe to be directly installed on the detection point
Button operation, single or dual gas calibration
Small and sturdy probe design, no moving parts, providing long-term stability and drift free operation
Dual bridge measurement circuit compensates for changes in background gas composition
The unique dual chamber, temperature controlled oxygen tank design prevents contamination and is not affected by temperature or flow rate
The computer enhancement function enables accuracy to reach 1% of the range and 0.5% of the linear range
Technical Specifications:
Accuracy:
± 1% of the measuring range
± 2% of the range (range 0~1%)
± 0.2% of the range (range 80-100%, 90-100%)
Linearity:
± 0.5% of the measuring range
repetitiveness
± 0.2% of the measuring range
Measurement resolution:
0.01mA
Zero stability:
± 1%/month of range, ± 2%/month of range (range 0-1%) range stability
± 0.4%/month of range, ± 0.8%/month of range (range 0-1%)
Measurement range (typical):
0~1% 0~25%
0~2% 0~50%*
0~5% 0~100%*
0~10% 90~100%*
0~21% 80~100%*
*Need pressure compensation transmitter temperature
Standard: Control at 45 ℃ Optional: Control at 60 ℃
Pressure impact
± 0.2%/μ mHg of reading (without pressure compensation)
Options with pressure compensation
Sampling flow rate
0.1~ 2.0SCFH (50~1000cc/min)， Usually 1.0 SCFH (500 cc/min)
The impact of sampling flow rate
<1% of the range (protective XMO2 with background gas compensation) sampling flow rate between 0.1~2.0 SCFH (50~1000 cc/min)
Response time (90% step change)
Fast: 15 seconds
EN50104:45 seconds standard: 70 seconds
warm-up time
30 minutes
function
analog output
4~20mA (isolated signal), maximum load of 800 Ω, can be set on site
Digital output
RS232， 3 lines
power supply
24VDC±4VDC，1.2A
cable length
1200m
