# Product Introduction

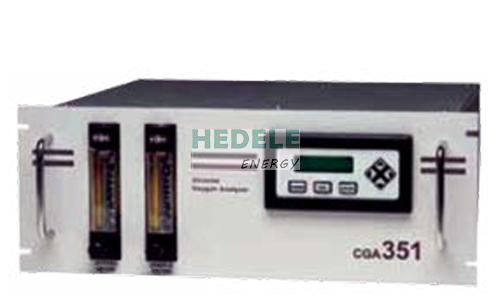

Panametrics Zirconia Oxygen Analyzer CGA 351
Adopting an advanced zirconia sensor, the zirconia oxygen analyzer can accurately measure oxygen content in process gases. The microprocessor-based electronic unit enables measurement ranging from ppm level to 100% oxygen.
# Applications and Uses
The CGA 351 Zirconia Oxygen Analyzer is suitable for monitoring and/or controlling high-purity gas streams or atmospheres in processes such as air separation, heat treatment, ceramic manufacturing and other industrial processes. A suitable sampling system may be required for dirty or wet gas applications.
# Product Specifications
## Panametrics Zirconia Oxygen Analyzer
### Features
- Fast and simple one-point calibration
- Low maintenance requirements
- Measures oxygen from 0.1 ppm to 100%; capable of oxygen measurement in reducing gases
- Fast response time (reaches 90% step change in less than 2 seconds)
- Extremely stable sensor operation
- Months of trouble-free operation; minimal calibration checks or adjustments required; one-point calibration covers the full range from ppm to oxygen percentage
- Enhanced accuracy at low oxygen concentrations
### Technical Parameters
#### Sensor Principle
Zirconia Principle
#### Measurement Range
0.1 ppm to 100% O₂
#### Accuracy
0.2 ppm within 0 to 10 ppm range or ±2% of reading
#### Repeatability
±1% of reading
#### Response Time
Less than 2 seconds for 90% step change
#### Sample Flow Effect
At 400 cc/min, flow variation from 40 cc/min results in 0.2 ppm deviation in the 0 to 10 ppm concentration range or 2% of reading
#### Output
0/4 to 20 mA, 0 to 2 V
#### Sample Flow Rate
400 cc/min (recommended flow rate ±40 cc/min)
#### Inlet Pressure
1 to 10 psig
#### Sample Outlet Pressure
1 atmosphere
#### Operating Temperature
-25°C to 50°C
#### Power Supply
100/115/220/240 VAC, 50 to 60 Hz, maximum power 900 W
#### Dimensions
- Sensor Enclosure: 7.0 in × 11.0 in (178 mm × 279 mm)
- Electronics Enclosure: 6.75 in × 8.0 in (171 mm × 203 mm)
#### Display Parameters
Oxygen (ppm or %) – Temperature (°F or °C) – Sensor (mV) – CJC Temperature (°F or °C)
# Product Applications
### General Applications
- Air Separation Units
- Glove Boxes
- Semiconductor Manufacturing Processes
- Heat Treatment and Metallurgical Processes
- Glass and Ceramic Research
- Inert Gas Purity Monitoring
- Comprehensive Gas Monitoring
- Medical Research
- Gas Blending
### Special Applications
- Welding Atmospheres
- Gas Generators
- Air/Fuel Mixtures
