# Product Introduction

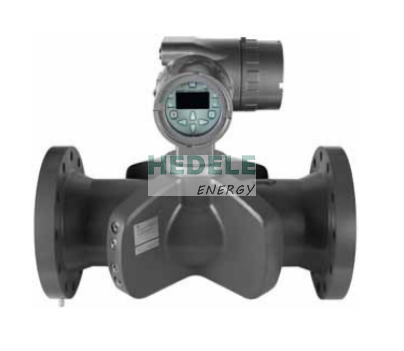

The LCT4 enhances the high reliability features of its predecessor, the Sentinel LCT. It features an exquisitely designed and compact meter body with an integral cable design, requiring no extended dampers or junction boxes. It retains all the advantages of ultrasonic flow measurement, including:
- Drift-free performance with no routine calibration required
- No pressure drop
- Unlimited pipe compatibility
- No moving parts, and no filters or strainers needed
# Product Specifications
## Specifications
### Operation and Performance
The design of the Sentinel LCT complies with OIML R117-1, MID MI-005 and API MPMS 5.8 standards.
### Fluid Type
Liquid hydrocarbons, crude oil and refined petroleum products, and other liquids
### Flow Measurement
Correlative transit time mode
### Accuracy
Volumetric measurement accuracy: <±0.15% for flow velocities ranging from 1 to 33 ft/s (0.3 to 10 m/s); extended range is available upon request.
### Repeatability
±0.02%
### Viscosity Range
0 to 6600 cSt. Consult the factory for higher viscosity requirements.
### Reynolds Number Range
Re > 5,000. Contact the factory for lower Reynolds number applications.
### Process Temperature
-40 to +140°C (-40 to +248°F)
### Ambient Temperature
-40 to +60°C (-40 to 140°F)
### Storage Temperature
-40 to +85°C (-40 to +176°F)
### Power Supply
- 100 to 240 VAC
- 12 to 32 VDC
### Display
High-contrast 128 x 64 pixel graphic display with LED backlighting.
### Outputs
- Two frequency/pulse outputs with DC optoelectronic isolation
- Two alarm relays
- One 4/20 mA output with HART protocol
### Inputs
- Two 4/20 mA inputs and one 100 ohm RTD input for optional temperature, pressure and density measurement
- Three 4/20 mA inputs for optional temperature, pressure and density measurement
### Digital Interfaces
- HART® over 4/20 mA output current
- PanaLink via RS232/485/USB
- Modbus RTU over RS232/485
# Product Applications
## Application Scenarios
- Liquid transfer metering
- Dispensing measurement
- Pipeline leak detection
- Crude oil and refined product measurement
- Critical liquid process monitoring of all types
