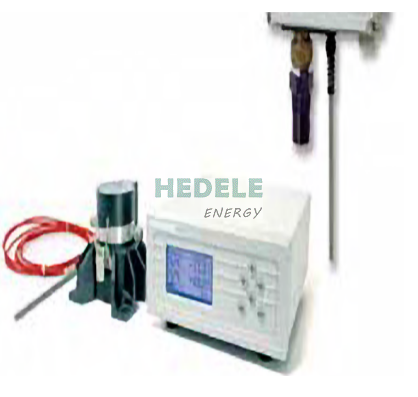

Optica Chilled Mirror Dew Point Meter

# Product Introduction
The chilled mirror dew point hygrometer can serve as a transfer standard for calibrating other humidity measuring instruments and sensors. It is the primary choice for process and laboratory applications requiring high-precision and drift-free measurements. The Optica can be equipped with 5 interchangeable chilled mirror sensors, covering a dew point measurement range from -80°C to 85°C (-112°F to 185°F) with an accuracy of 0.2°C (0.36°F) or better.


# Product Parameters
## Chilled Mirror Dew Point Hygrometer
### Features:
- Ethernet port
- Java web browser
- 6M data storage capacity
- Upload stored data in ASCII format
- Data exportable to spreadsheets
- Real-time strip chart display
- Color VGA or 4 × 40 dot matrix display screen


### Application Fields:
- Laboratories
- Clean rooms & environmental test chambers
- High-precision HVAC monitoring
- Fuel cells
- Calorimeters for heat exchangers and refrigeration coils
- Thermal processing / heat treatment
- Semiconductor manufacturing
- Storage areas
- Pharmaceutical testing laboratories
- Engine test cells and emission testing
- Aircraft engines and turbines


## Chilled Mirror Dew Point Hygrometer
### Main Technical Parameters
#### Measured Parameters:
Dew point, temperature, 4 to 20 mA / 0 to 5 VDC


#### Calculated Parameters:
Relative humidity, wet-bulb temperature, mass ratio, volume ratio, enthalpy and water vapor pressure values. Metric, imperial or user-defined units are optional.


#### Input:
1/3 Class A DIN 43760, 100 Ω RTD, dew point/frost point and dry-bulb temperature. Loop-powered 4 to 20 mA DC with 500 Ω load.


#### Accuracy:
System accuracy of dew point/frost point: ±0.1°C (±0.36°F); Temperature accuracy: ±0.15°C (±0.27°F); Pressure accuracy: 0.5% of full scale.


#### Measuring Range:
Dependent on the sensor


#### Sensitivity:
0.1% FS


#### Display:
1/4 color VGA display supporting up to 6 parameters; or 4 × 40 dot matrix display supporting 3 parameters.


#### Digital Interface:
RS232 port, Ethernet port*


#### Analog Output:
(2) 4 to 20 mA and 0 to 5 VDC, user-configurable and expandable


#### Relay Output:
(2) 5 A at 250 V, C-array (SPDT) relay


#### Enclosure:
Benchtop type: Grade 1
Wall-mounted type: Grade 4


#### Weight:
Benchtop type: 3.6 kg (8 lb)


# Product Applications
## Application Fields:
- Laboratories
- Clean rooms & environmental test chambers
- High-precision HVAC monitoring
- Fuel cells
- Calorimeters for heat exchangers and refrigeration coils
- Thermal processing / heat treatment
- Semiconductor manufacturing
- Storage areas
- Pharmaceutical testing laboratories
- Engine test cells and emission testing
- Aircraft engines and turbines
