# Product Introduction

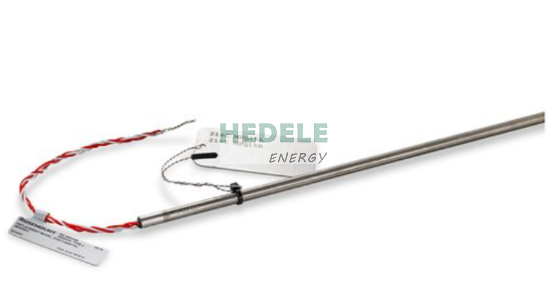

The Rosemount 214C Thermocouple Temperature Sensor is an industry-standard sensor that maintains resilience and durability in harsh operating environments. This sensor offers Type J, K and T thermocouples, complying with ASTM and IEC thermocouple accuracy tolerance standards. It delivers stable performance under high-vibration conditions with a wide temperature range, and is available in single or dual configurations with grounded or ungrounded junctions.
# Product Parameters
## Specifications
- Insulation Resistance
Minimum insulation resistance of 1000 MΩ when measured at 500 VDC at room temperature.
- Certifications
Refer to the complete specifications for a full list of certifications for hazardous locations.
- Lead Wire
24 AWG wire with FEP insulation. Color-coded in accordance with IEC 60584 or ASTM E230.
- Insulation Resistance
Minimum insulation resistance of 1000 MΩ when measured at 500 VDC at room temperature.
- Certifications
Refer to the complete specifications for a full list of certifications for hazardous locations.
# Product Applications
## Features
- Thermocouple sensor types including J, K and T for application convenience.
- Thermocouple accuracy tolerances meet ASTM and IEC standards to ensure reliable performance.
- Wide temperature coverage ranging from -196 to 1200 °C (-321 to 2192 °F), with long service life in various operating environments.
- Withstands high-frequency vibration and adapts to rigorous operating conditions.
- Available in single or dual configurations with grounded or ungrounded junctions to ensure process compatibility.
- All sensor types and lengths feature industry-standard ¼-inch diameter Mineral Insulated (MI) cable.
- Adjustable or fixed compression fittings, spring-loaded or welded adapters to meet special installation requirements.
- Optional enclosures and connectors to adapt to diverse process conditions.
- Global hazardous location certifications to meet project requirements.
