# Product Introduction

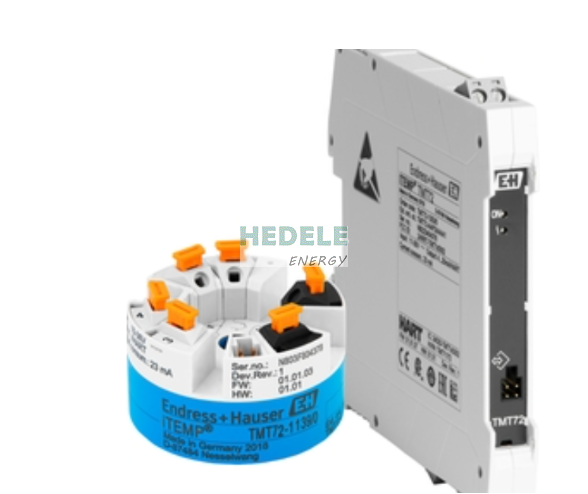

HART® temperature transmitter, available with head-mounted, field-mounted or DIN rail mounting options. It features one universal sensor input and enables safe operation in hazardous areas.
## Advantages:
- Certified internationally for safe operation in hazardous areas.
- Multiple mounting methods and housing types: Class B junction box, DIN rail mounting; polyester coating, polyurethane coating and stainless steel housing are optional.
- Built-in Bluetooth interface for wireless remote display of measured values; configuration can also be completed via the Endress+Hauser SmartBlue® App.
- Diagnostic information complies with NAMUR NE107 standards.
- Optional pluggable measured value display unit TID10.
- Maximum measurement accuracy achieved through sensor-transmitter matching.
# Product Parameters
## Product Specifications
### Measurement Accuracy
(Pt100, -50...200 °C) ≤ 0.1 K
(Pt100, -58...392 °F) ≤ 0.18 °F
### Measuring Principle
Modular transmitter
Input: 1 x RTD, TC, Ohm, mV
### Output
1 x analog 4...20 mA / HART
### Auxiliary Power Supply
10...36 V DC (Head transmitter)
11...36 V DC (DIN rail device)
10/11...30 V DC (Ex ia)
### Communication
HART-protocol, Bluetooth® wireless technology
### Mounting
Terminal head form B / DIN rail / field mount housing
### Electrical Isolation
Yes
### Certificates
ATEX Ex ia, Ex ic, Ex tc, Ex nA, Ex db, Ex tb
ATEX IECEx Ex ia, Ex tb
IECEx Ex d, Ex tb
CSA C/US General Purpose
CSA C/US IS, Ex ec, XP, DIP
INMETRO Ex ia, Ex d, Ex tb
NEPSI Ex ia, Ex d, Ex tb
EAC Ex ia, Ex d
UKCA Ex ia, Ex tc, Ex nA, Ex db, Ex tb
# Product Application
## Application Fields
It delivers high reliability, high measurement accuracy and excellent long-term stability when applied in critical process sections across all industries. The configurable transmitter supports HART communication, which can receive RTD, thermocouple (TC), resistance and voltage signals, and convert them into standard output signals. Its diagnostic information meets NAMUR NE107 requirements. It can be seamlessly integrated into mainstream control and asset management systems. Remote operation is available via Endress+Hauser SmartBlue relying on the built-in Bluetooth® technology.
